KTM Macina Kapoho 275 Electric Bike 2017



KTM MACINA LYCAN 275 MODEL 2017, THE ENTRY LEVEL OF THE LYCAN SERIES



KTM Macina Lycan 275, 2017 model, is a full-suspension MTB with the latest technologies both in the construction of the frame and electronics. Starting from the derailleur gear up to the hydraulic brake system, both by Shimano, this MTB gives the user an immediate confidence. Thanks to new Bosch Performance CX motor and the 500Wh battery strong performance and range are achievable. The fork is the RockShox Recon Silver RL and suspension RockShox Monarch RL which together allow it to absorb the roughness of the ground very effectively and to have the necessary grip for ultimate control. In either white with orange/black details or matt black with blue/white details and 27.5" wheels the KTM Macina Lycan 275 is suitable for all Cross Country lovers!

COMPONENTS OF MTB KTM MACINA LYCAN 275



The electric MTB KTM Macina Lycan 275 has a full-suspension system of aluminum frame with four joints, 27.5" wheels, Continental X-King Sport plus format tyres(measuring 55-584) mounted on a rim KTM Line, the fork RockShox Recon Silver RL, with 120mm of travel, lockable from the handlebar and rear suspension RockShox Monarch RL-C2 with 125mm excursion with rebound adjustment and lockout. The gear is Shimano 10 speed with Deore T610 10 speed lever selection, derailleur SLX M7000 and HG50 cassette with 11 to 36 teeth, which allows fast and accurate change in any situation. The hydraulic braking system is the Shimano M425 with 180mm discs and pads with forced cooling. Ultimately the eBike Macina Lycan 275 has all the features of a top range bike with outstanding Cross Country qualities on any terrain or gradient.

THE PROPULSION SYSTEM MTB KTM MACINA LYCAN 275 2017

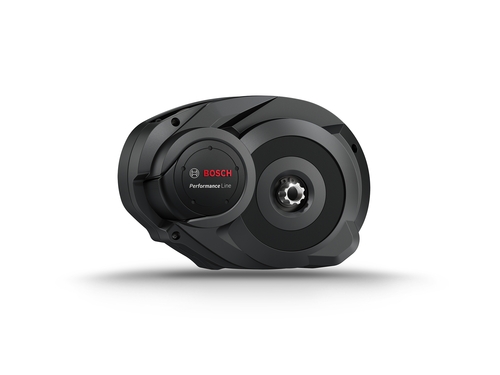

The Macina Lycan 275 mounts the well-proven motor Bosch Performance Line. The Performance Line motor processes data from different sensors, torque, speed, cadence thousands of times per second, thereby ensuring efficiency at the highest level. This enables the motor to give a very fluid power delivery of up to 60nm of torque up to a speed of 15.5mph which is limited by the law. The Intuvia display, mounted centrally on the handlebar, with thumb command, allows you to easily see all the user information,and to charge an external device with a USB port. The battery is the BoschLithium-ion 500Wh (13.9Ah) that can be recharged in just 3.5 hour.

FRAMEMacina Lycan Alloy 27.5" / 4-Linkage PDS-2 System / 125mm Travel
E-DRIVE SYSTEMBosch Performance CX 250w System / 500Wh Battery / Intuvia Display
REAR SHOCKRockShox Monarch RL-C2
FORKRockShox Recon Silver RL / Tapered Steerer / Rebound Adjust / Lockout / 120mm Travel
STEMKTM Comp ST-92A
HANDLEBARSKTM Comp HB-RB11L
FRONT BRAKEShimano BR-M425 hydraulic disc / 180mm RT-54 Rotor
REAR BRAKEShimano BR-M425 hydraulic disc / 180mm RT-54 Rotor
BRAKE LEVERSShimano BR-M425 hydraulic disc
FRONT DERAILLEUR N/A
REAR DERAILLEURShimano SLX M7000 Shadow Plus / 10-Speed
SHIFTERSShimano Deore T610 Shadow Plus / 10-Speed
CASSETTEShimano CS-HG50 / 11-36T / 10-speed
CRANKSETKTM Delta
RIMSKTM Line 27.5"
FRONT HUBShimano Deore M618 CL / 15x100mm
REAR HUBShimano Deore M618 CL / 142x12mm
FRONT TYREContinental X-King Sport 27.5"
REAR TYREContinental X-King Sport 27.5"
SADDLESelle Italia Q-Bik
SEATPOSTKTM Comp SP-DC1K

Occasionally without notice, manufacturers sometimes change product specifications.
